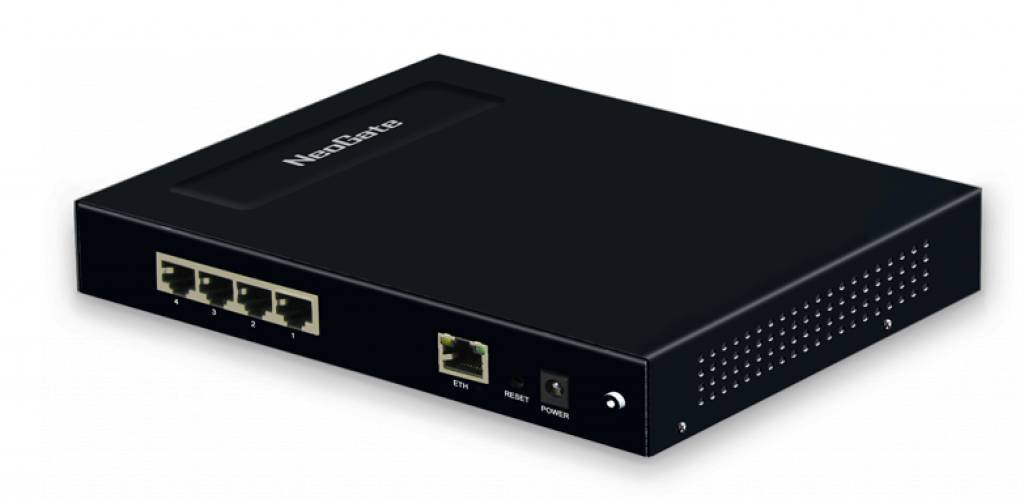

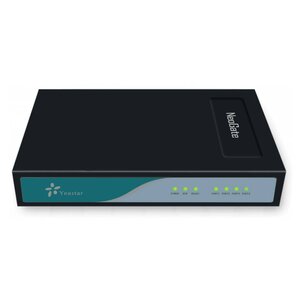

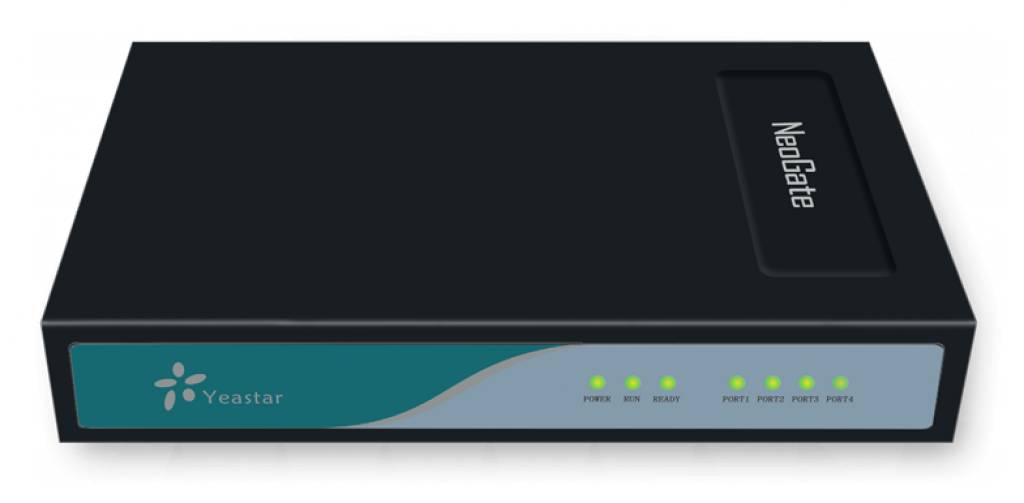

Yeastar Neogate TB200 (2x BRI NT/TE)

Met de NeoGate TB200 kunt u uw tradionele ISDN telefooncentrale met maximal 2 ISDN-2 poorten aansluiten op SIP trunks om te bellen via VoIP.

De TB200 is vrij eenvoudig via  een interne Web Interface te configuren.


_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_

_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ Specification _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ Features _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ BRI Port: 2 (RJ45) Protocol: SIP (RFC3261), IAX2 Transport Protocol: UDP,TCP,TLS,SRTP. DTMF: RFC2833, SIP INFO, In-band Codec: G.711 a/u-law, G.726, G.729 A, GSM, Speex. Network: DHCP, Firewall, VLAN, DDNS, OpenVPN. Size: 200x140x35mm Power Supply: AC 100~240V/50~60Hz (DC 12V, 1A)  _x000D_ BRI ports can be used as TE/NT mode SIP proxy Registrar for IP phones included  LCR (Least Cost Routing)  Simple web based configuration Easy to integrate  Easy to install _x000D_ _x000D_ _x000D_

_x000D_



_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_

 TB200/400 Datasheet

 TB200/400 Installation Guide

 TB200/400 User Manual
