* Â Optioneel uit te breiden tot Multi-site (tot 4 locaties)
**Optioneel uit te breiden tot Full HD (1080p)
 Userguide Specificaties

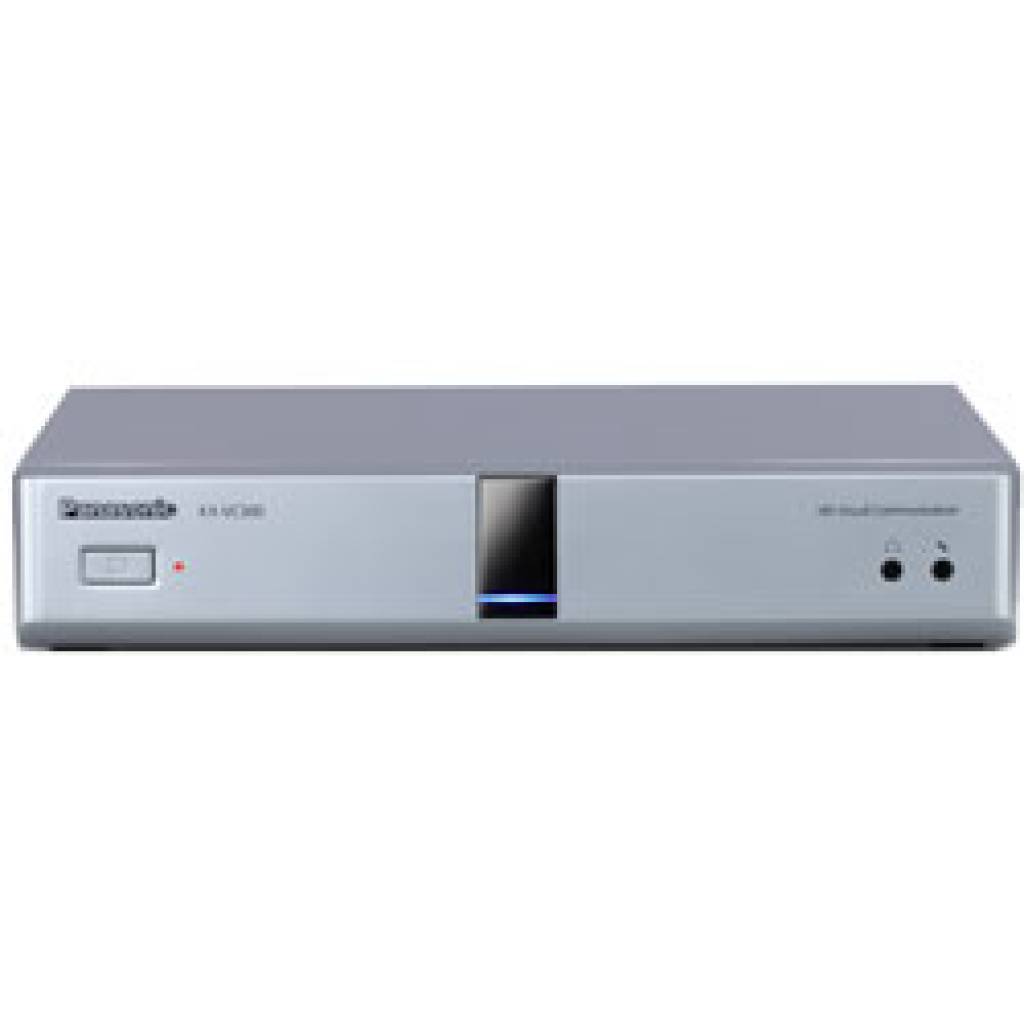

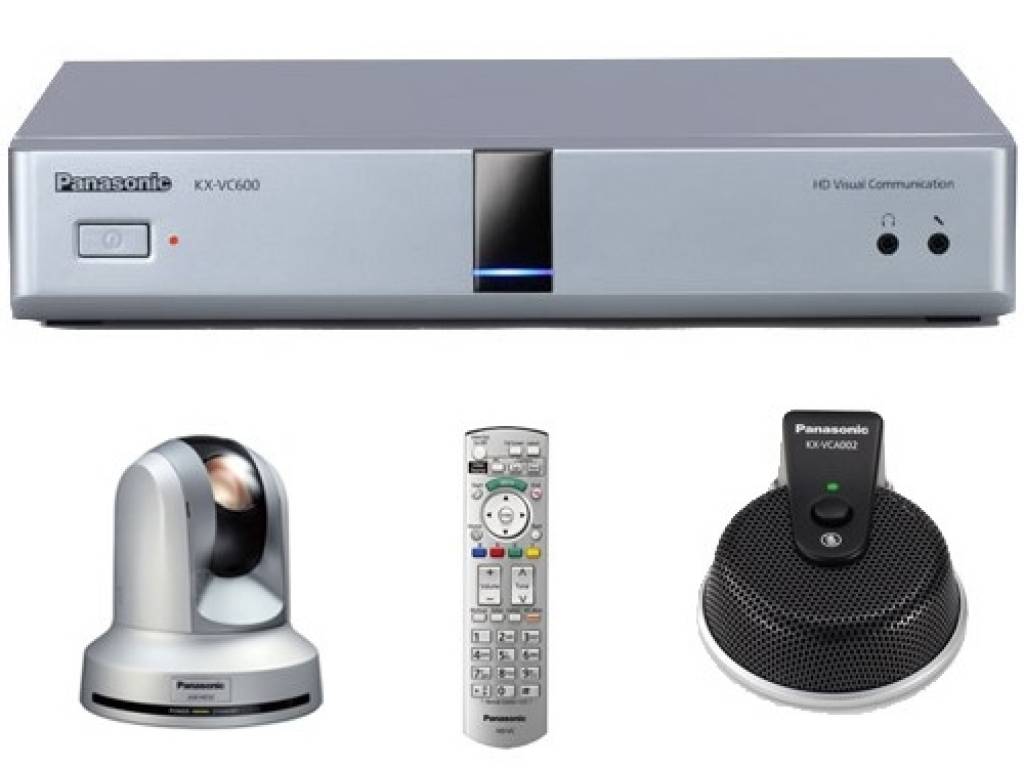

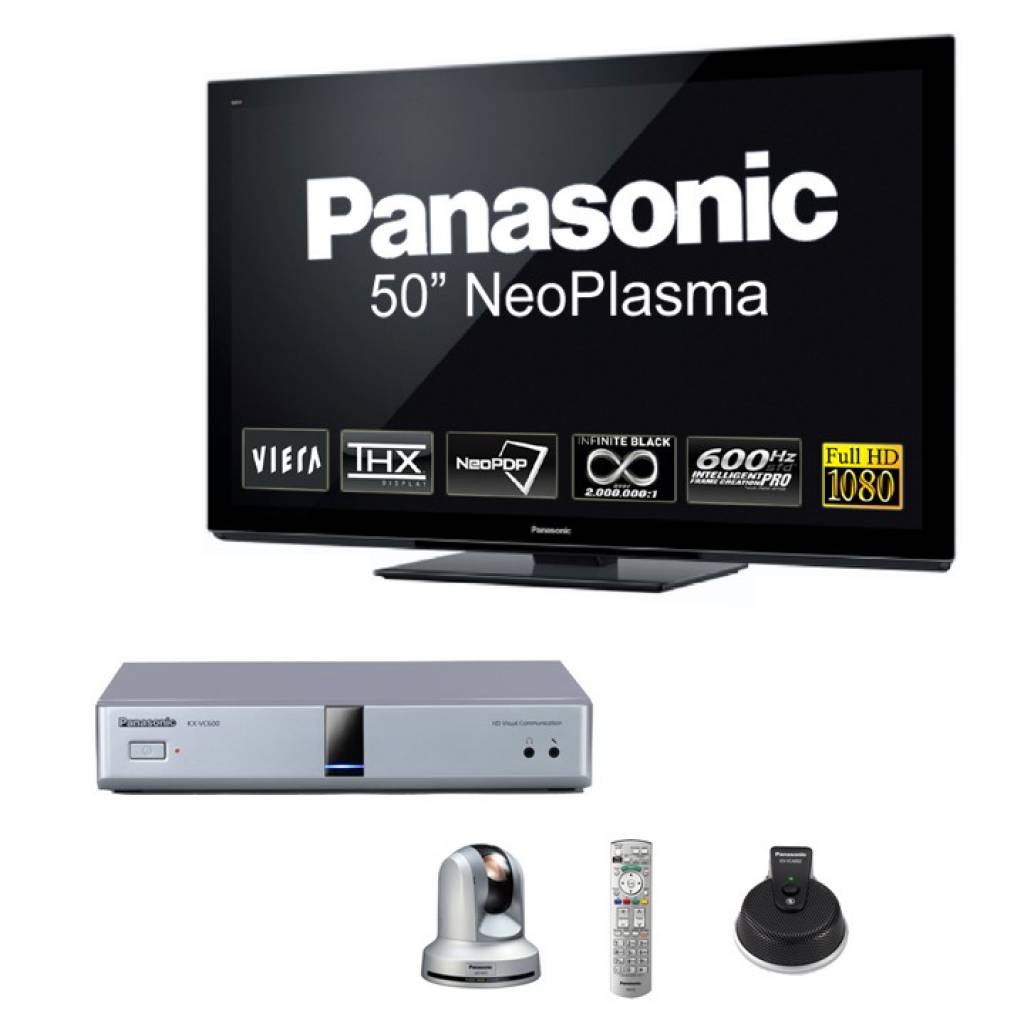

Panasonic KX-VC300 Complete
Take Your Meetings to the Next Level, with the HD Visual Communications System from Panasonic.
Collaborate in real time, in stunning HD!
With Full HD video and Full Duplex audio over a standard Internet connection, this compact, easy-to-use, interoperable system is
changing the face of business meetings.Â
KX-VC600/KX-VC300 Features
High Image Quality
Panasonic's original high image quality technology achieves a dynamic level of realism that makes you feel like you're all in the same room.
High Sound Quality
Conversations are comfortable thanks to our Echo Canceller that prevents sound interruptions when people speak simultaneously.Â
Stable Connection
Image disruptions and sound interruptions are prevented even on the Internet thanks to original A/V-QoS technology.
Computer Connection/Sub-CameraConnection
Effective communication is possible while showing the other party a PC screen or sub-camera image. You can also easily switch from one screen to the other with a single touch of the remote control.
Other-Brand Device/MCU Interoperability
Interoperability with other-brand devices and MCUs is a standard feature. This allows smooth expansion into existing videoconference systems, and multi-point communications using an MCU.
|
Specifications
|
||
| Main Unit (KX-VC600 / KX-VC300) | KX-VC600 | KX-VC300 |
| Communication protocol |
SIP
|
|
| Communication rate (Min to max) |
IP communication with 2 locations connected
512 kbps to 9 Mbps IP communication with 3 locations connected[*1] 1 Mbps to 7 Mbps IP communication with 4 locations connected[*1] 1.5 Mbps to 7 Mbps |
|
| Bandwidth (For different levels of resolution) |
3 Mbps minimum[*2] for 1080i[*3]
1.5 Mbps minimum[*2] for 720p 512 kbps minimum[*2] for 4SIF |
|
| Video codec |
ITU-T H.264 high profile level 4.0 (B picture is not supported),
ITU-T H.264 baseline profile level 3.1 (For connections to MCUs and non-Panasonic video conference systems) |
|

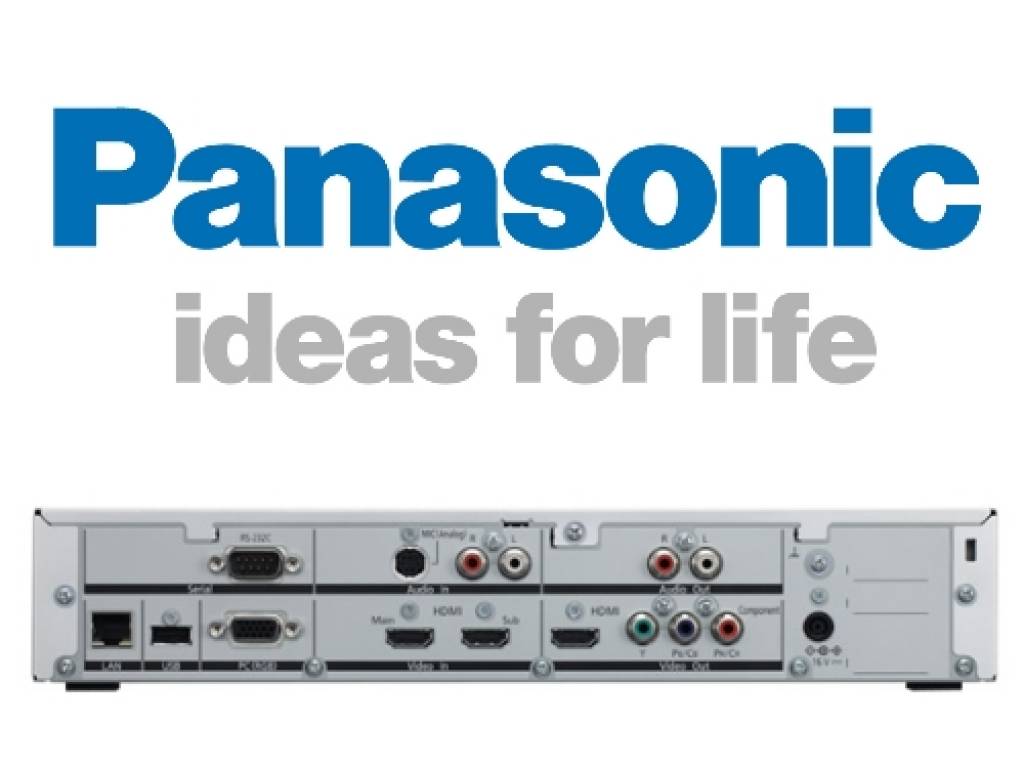

| Video input |

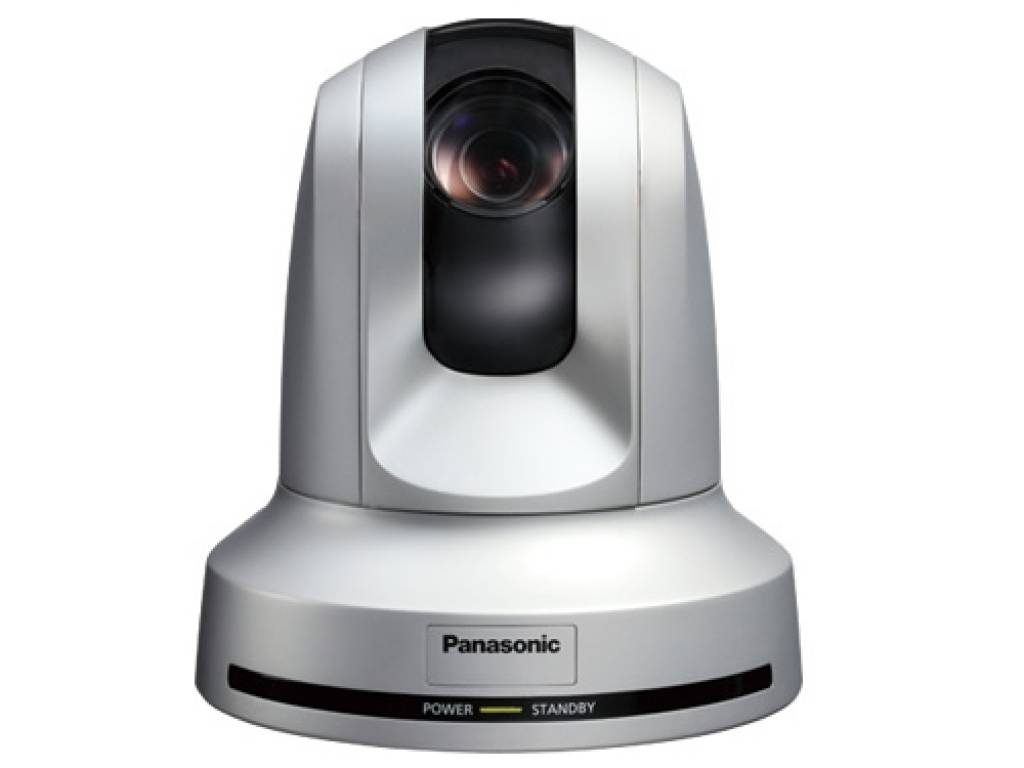

HDMI 1 (main video camera)
Input resolution: 1080i (image only)Â HDMI 2 (sub video camera) Input resolution: 1080i (image only) Available devices: Video camera (Blu-ray Disc/DVD players cannot be connected) VGA 15P mini D-Su Input resolution: XGA, SVGA, VGAb (RGB IN) |
|
| Audio codec |
MPEG-4 AAC-LD (LATM format), G.722 (For connections to MCUs and non-Panasonic video conference systems)
|
|
| Audio input |
Digital boundary microphone
KX-VCA001 (Up to 4 microphones) |
-
|
|
Analog boundary microphone
KX-VCA002 (1 microphone only) Stereo mini-plug (audio input) Diameter 3.5 mm Available devices: headset Input is the headset microphone level. HDMI/RCA output is inactive when the headphone connector is used. RCA pin jack (audio input) Maximum line level input: 1.2 Vrms Available devices: stand microphone (via microphone amplifier), audio mixer etc. Echo canceller enabled Both enabled when using a Boundary Microphone and RCA microphone together´ |
||
| Audio output |
(HDMI)
For connecting to a display (with speaker)Â Stereo mini-plug (audio output) Diameter 3.5 mm Available devices: headset Output is the headphone. Either the RCA terminal or the headphone connector is active, but not both. RCA pin jack (audio output) For connecting to a display (with speaker), amplifier or active speaker |
|
| Maximum conference points |
4 [*4]
|
2 [*1]
|
| Alternative video sources |
PC (VGA terminal), sub video camera (sub HDMI video only)
|
|
| Encryption method |
AES-CM/unique
|
|
| Network RJ45(LAN) |
Full duplex 100BASE-TX only
|
|
| Control (serial) RS-232C |
For connecting to a computer for maintenance (use a straight cable) D-Sub 9 pin (male)
|
|
| Dimensions (W x H x D) |
Approx. 320 mm x 60 mm x 230 mm
|
|
| Weight |
Approx. 2 kg
|
|
| Voltage and frequency |
AC 100-240 V, 50/60 Hz
|
|
| Power consumption |
Maximum: approx. 39 W
|
Maximum: approx. 23 W
|
| Operating temperature |
0 °C to 40 °C
|
|
| Operating humidity |
10 % to 90 % (non-condensing)
|
|
[*1] The KX-VC300 also allows connection of 3 or 4 locations when it is on the receiving end of a call.
The optional Activation Key Card lets you expand the KX-VC300's maximum conference points to up to 4 locations.
[*2] This value is for reference purposes only. The actual value may vary depending on the image and communication conditions.
[*3] The optional Activation Key Card lets you upgrade the maximum resolution of the KX-VC300 system to 1080i.
[*4] Some restrictions apply when 3 or 4 locations are connected. For details, please consult with your local dealer.
When connecting to non-Panasonic video conference systems, connection is limited to 2 locations.
[*5] Stereo sound can also be picked up from 2 to 4 units by changing the user setting.
