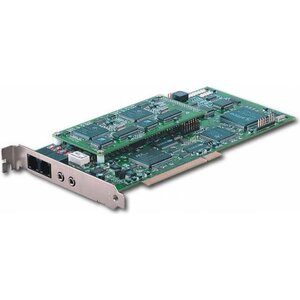

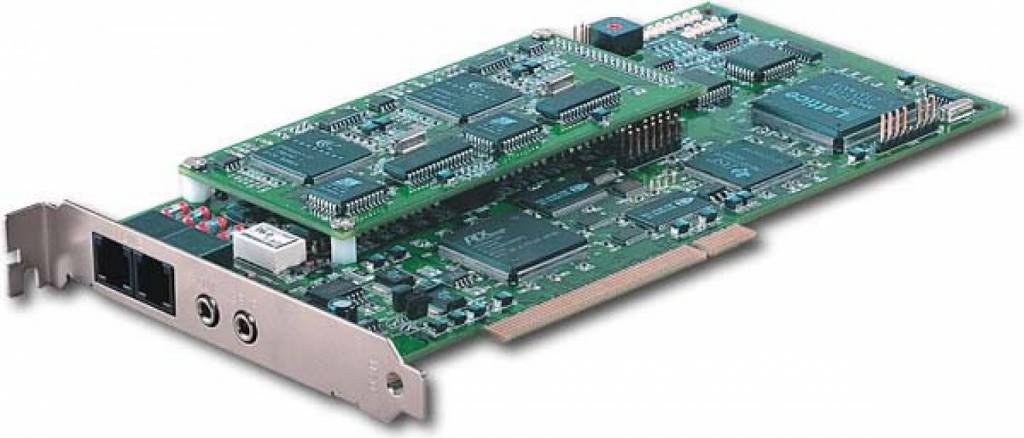

Talk Voice 2/4 LV+
2- and 4-Port DSP-based Analog Interface Voice Board
| Hardware Features |
- Two, four independent voice processing ports supporting low-to medium-density voice systems in a single PC (PCI Bus)
- Two extra audio jacks allow voice monitoring and auxiliary audio input
- µ-law voice coding with selectable data rates 32 Kb/s or 64 Kb/s on a channel-by-channel basis
- Configure multiple boards in a single PC for easy and cost-effective system expansion, capable of scaling from 2 to 20 ports
|
Applications |
- Interactive Voice Response (IVR)
- Automatic Call Distribution (ACD)
- Unified Messaging System (UMS)
- Unified Communication (UC)
- TAPI-compliant AA, VM and Recording applications (Many available, consult your dealers for details)
- Voice and Fax applications Development
|
Technical Description |
- Configuration
The Talk Voice 2/4LV+ provides two/four telephone line interface circuits for direct connection to analog loop start lines.
Up to 5 Talk Voice boards can be installed in PCI slots of a single PC chassis enabling port expansion up to 20 ports per system.
Quality voice can be recorded in ADPCM, PCM or WAV formats.
- Network Interface
The Talk Voice 2/4LV+ supports powerful call progress analysis, provides parameters programmable for country-specific regulation ,enhanced DTMF detection & cut-through, plus PABX-specific tone detections.
- Open Architecture
The Talk Voice 2/4LV+ boards share a common driver architecture with other CallURL Talk Voice boards, offering users and developers with the maximum in flexibility and scalability.
All Talk Voice products support standard TAPI and wave drivers for Windows 2000, 2003 and Windows XP (Home or Pro. editions).
|
| Product Specifications |
- General
Number of ports: 4 (4LV+)
Number of ports: 2 (2LV+)
Max. boards per system: 5
Digital signal processor: TI TMS 320VC5402 @100 MIPS
- Host Interface
Electrical: Rev. 2.2 of PCI bus specification
Bus speed: 33 MHz maximum
Shared memory: 256 KB dual port static memory
Address and interrupts configured automatically by PnP BIOS or PnP OS
Board ID: Rotary switch to uniquely identify each board
- Telephone Interface
Line interface: Loop-start
Connectors: Two RJ-14 Jacks
Return loss: 20 dB min (300 to 3300 Hz at 600 Ohms impedance)
Caller ID: International Caller ID capability via on-hook audio path
- Audio Signal and Interface
Audio I/O jacks: 3.5mm audio in & out jacks
Automatic gain control (AGC)
Silence detection: programmable (nominal: -44 dBm)
Call progress monitoring: standard and custom frequency based
- Audio Encoding
Sample rate: 8KHz
32 Kbps OKI ADPCM
64 Kbps µ-law PCM
64 Kbps windows 8-bit PCM
- DTMF Tone Detection
DTMF digits: 0 to 9, *, #, A,B, C & D
Dynamic range: -36 dBm to -3 dBm per tone
Tone duration: 40 ms (minimum)
Acceptable twist: 10 dB
- Tone Dialing
Transmit level: normal at -6.0dBm (high), -8.0dBm (low), parameters programmable
Frequency variation: < 1%
- Bundled Drivers and Software
Bundled with EasyTAPI TAPI and wave drivers for Windows 2000 and Windows XP
- Software Compatibility
Microsoft TAPI and wave driver compliant applications
- Power Requirements
+5.0V @ 500 mA
+3.3V @ 500 mA
+12V Â @ 200 mA
- 12V Â @ 200 mA
- Size
215mm (L) x 107mm (H); 12.283 (L) x 4.2 (H)
- Certification
Telephone network: FCC Part 68
EMI: FCC Part 15, Class B
BSMI / TAIWAN
- Environment
Operating temperature: 0 to 50 C (32 to 122 F)
Storage temperature: -20 to 65 C (4 to 149 F)
Humidity: 10 to 80%, non-condensing
|
